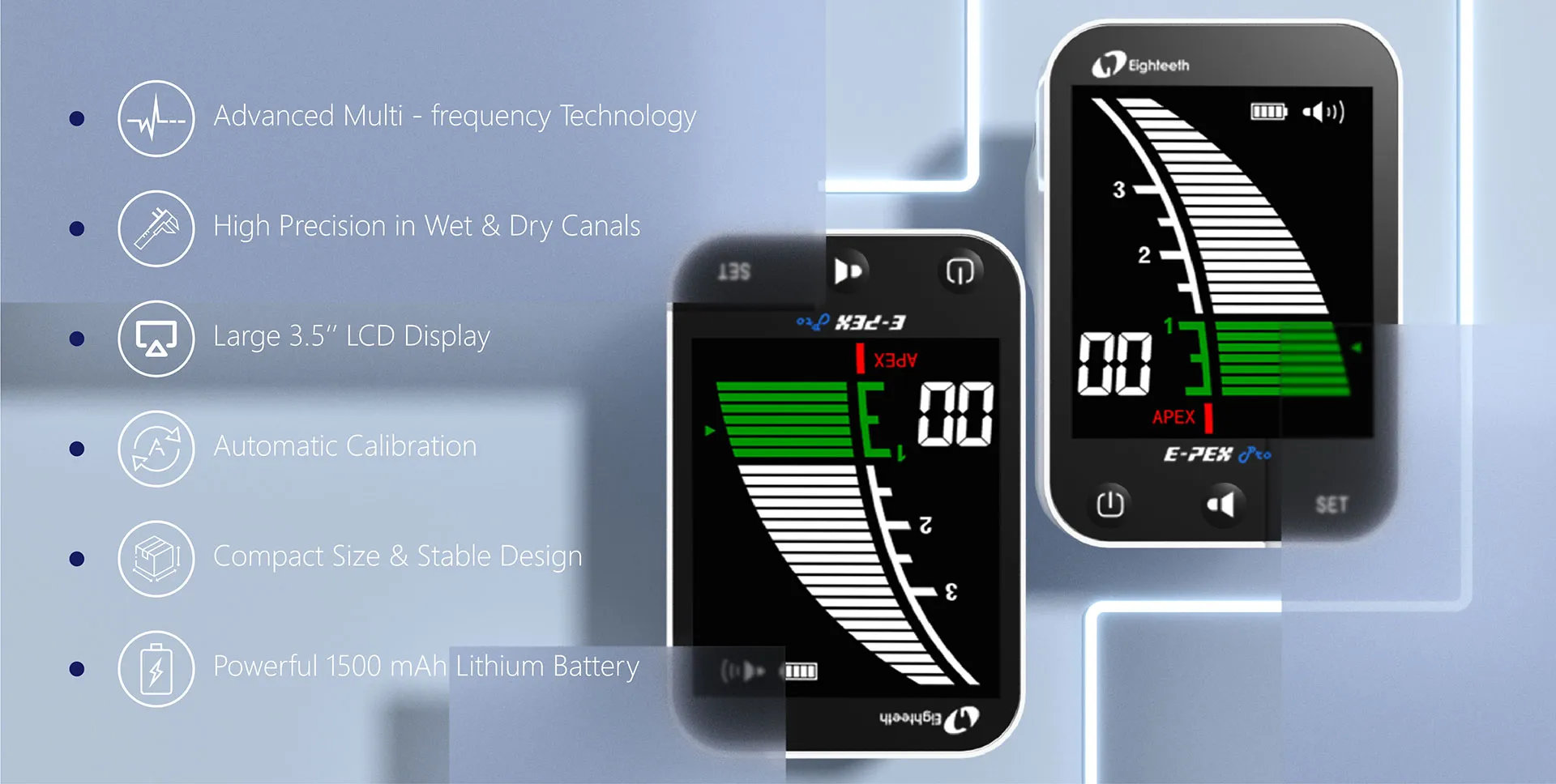

• Based on advanced multi-frequency network impedance measurement technology.

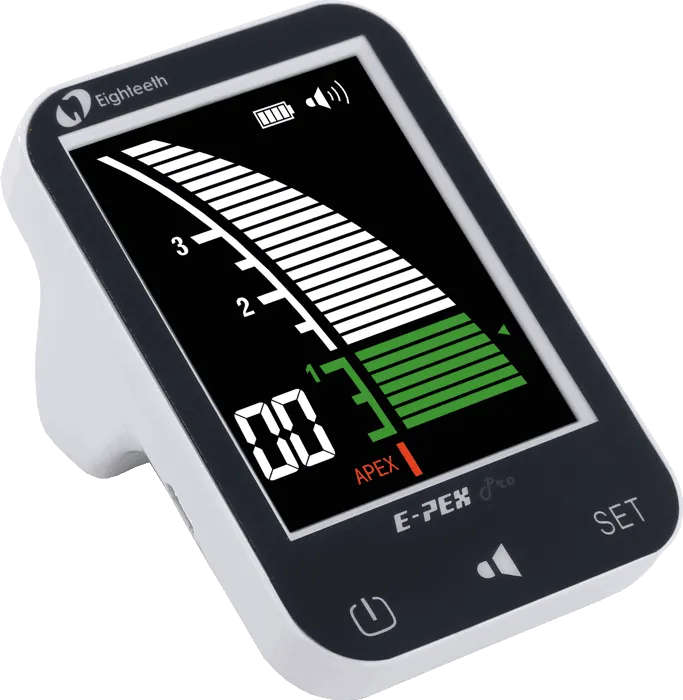

• LCD Display: Bright & clear display
• High precision of apical foramen localization in wet & dry canals
• Automatic calibration: Ensure stable & accurate measurements
• Compact size & stabledesing allows for excellent flexibility during procedures

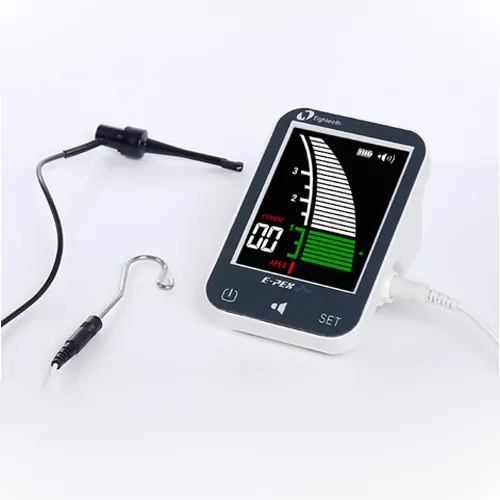

Apex Locator to determine the position of the apical constriction & length of the root canal space.

Preparation:

• Ensure that the patient is comfortably positioned, and the dental operatory is set up for endodontic treatment.
• Sterilize the apex locator probe and cover it according to standard infection control procedures.

Device Setup:

• Turn on the E-Pex Apex Locator and allow it to complete the automatic calibration process.
• Connect the apex locator probe to the device.

Patient Isolation:

• Isolate the tooth with a rubber dam to keep the area dry and free from saliva.

Access Cavity Preparation:

• Access the pulp chamber and prepare the canal for instrumentation.

Insertion of File:

• Insert a sterile endodontic file into the root canal. Ensure that the file is properly seated and not in contact with the canal walls.

Initial Measurement:

• Gently advance the file until it reaches the coronal part of the canal.
• Observe the readings on the LCD display. The initial position is usually marked by a specific color code on the screen.

Working Length Determination:

• Continue advancing the file slowly while monitoring the display.
• Note the color changes on the screen, indicating the proximity of the file to the apical foramen.
• Stop when the screen displays the desired measurement or when the red indicator appears (indicating that the file has exceeded the apical foramen).

Additional Functions:

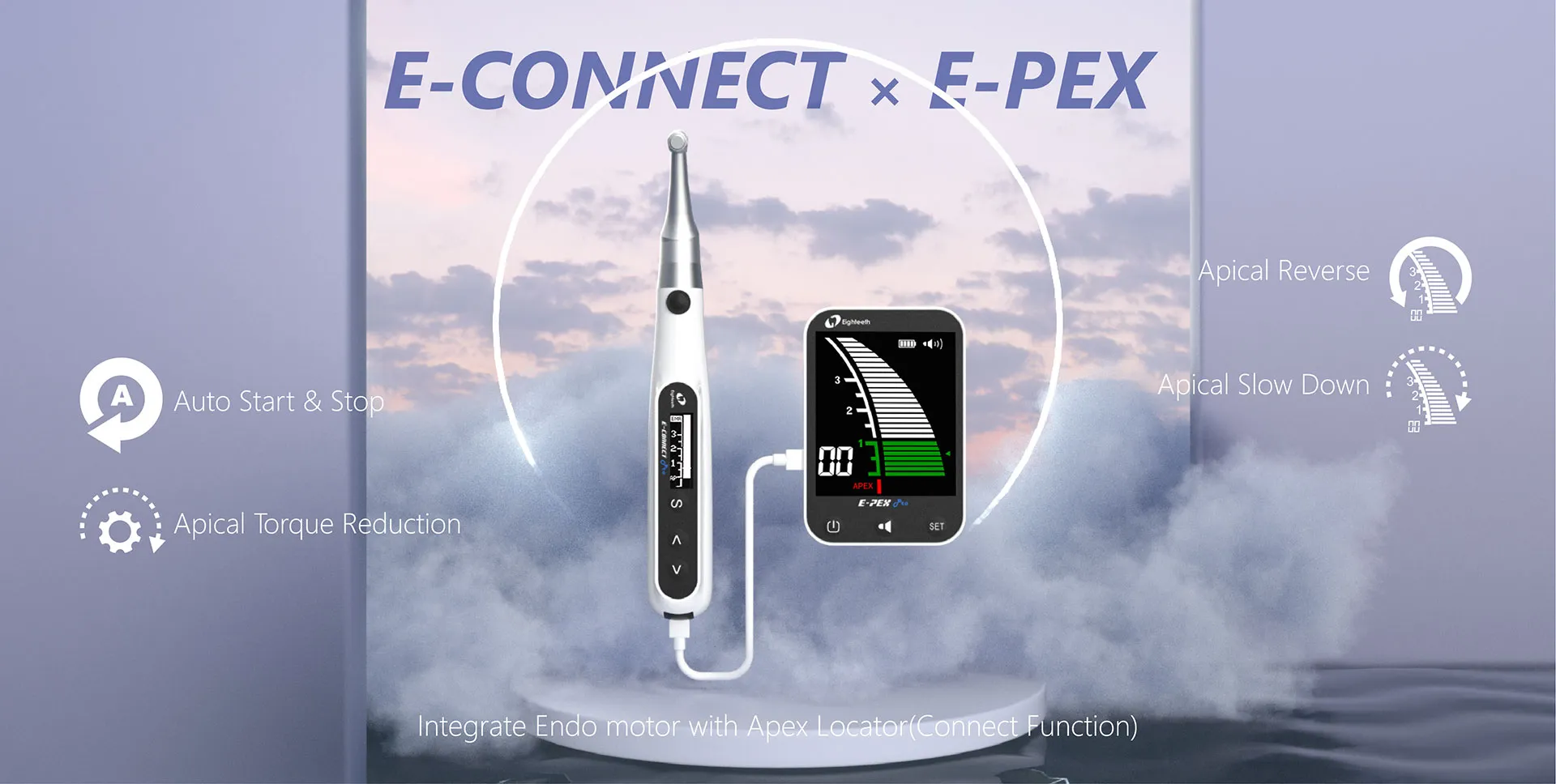

• If integrated with an endomotor (E-CONNECT), utilize additional functions such as Auto Start-Stop, Apical Reverse, Apical Slow Down, and Apical Torque Reduction according to the specific requirements of the case.

File Removal:

• After determining the working length, carefully withdraw the file from the canal.

Cleaning and Sterilization:

• Clean and sterilize the apex locator probe and file according to recommended protocols.

• Country of Origin: PRC
• Manufacturer: Eighteeth

• Manufacturer/Importer warranty of 1 Year against manufacturing defect
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Supreme Dental and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
